| China aluminum die forging automation nbspcompany produces main products according to technical drawings or samples. The forged tolerance can be controlled with 8062 CT5-6 .The wall thickness ranges from 3-50mm.The machining tolerance can be upmost±0.015.The net weight of unit product can be controlled with 0.05-50kg from simple to complex shape, the forged diameter can fulfill 600mm. Our products cater to the globe customers in all walks of life from America nbsp, Europe, Australia, South Africa, middle Asia etc. They can be project contractor, OEM, huge nbspdistributor , etc. The products is widely used in various industries.br /
br /
br /
auto parts amp engine partsbr /
pump amp valve partsbr /
food processing partsbr /
railway amp train partsbr /
building amp lighting fittings,br /
mining machinery amp construction equipment partsbr /
agricultural machinery partsbr /
shipbuilding parts amp gear hardwarebr /
petroleum machinery partsamp pipe fittingsbr /
building amp construction fieldbr /
power plant components.br /
br /
br /
Used high quality Material of different standards: AISI, ASTM, AAR, AS, DIN, BS, etc.br /
br /
br /
Our annual export capacity can reach to 1000 ton. Our mission is cost saving with quality guarantee to create more value for our customers by good service.br / |
|
|
|
|
| Process Description |

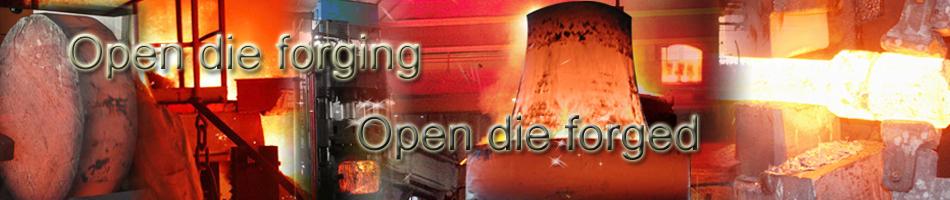

Open Die Forging Technological Process
|
|
|
1, Melting Customized Raw Material
Melting customized raw material according to chemical composition which customer provide.
|
2, Spectrum Testing
We will continue produce after chemical composition approval.
|
|
|
|
3, Cutting Steel
Cutting steel into the best proportion for forging.
|
4, Annealing
Annealing for raw material to ensure there is no cracks in products during forging process.
|
|
|
|
5, Forging Process
|
6, Rough machining
|
|
|
|
7, Heat Treatment
We could do different heat treatment ways according to mechanical properties which customer request.
|
8, Inspect Mechanical Properties
We will cut a test specimen from product body to test, and continue producing after test specimen approval.
|
|
|
|
9, Machining
Machining according to drawing dimentions or customer's delivery dimention request.
|
10, Magnetic Particle Testing (MT)
We usually use MT to inspect surface cracks of products.
|
|
|
|
11, Ultrasonic Testing (UT)
We usually use UT to inspect the size of products internal defect, and tell approval or not according to customer's UT grade request.
|
12, Final Inspection
We will do visual inspection and inspect dimentions of products by measuring inplements after finishing.
|
|
|
|
13, Packing
|
14, Transport
|
|
|
|
|
|
